Green Base
GREEN BASE
Photon Flux Efficacy
Operating Voltage
Overvoltage Protection
Burst/Surge Protection
Power Factor
Driver
Thermal Management
Optics
Dimming
LED Code
2,26μmol/J /360-780nm
196 ~264VAC
320V AC, 48h
2kV
> 0.97
Internal, industrial
Passive
60°, 90°, symmetric
1% to 100% (DSI, DALI2)
L80B10
SINGLE BAR
Model
Power
Length
Green Base 1 22W 600mm
Green Base 2 43W 1160mm
Green Base 3 64W 1720mm
FRAME FOR MODULAR DESIGN
Model
Length
Frame for 2 lights 370mm
Frame for 3 lights 560mm
Frame for 4 lights 740mm
RECIPES FOR PLANT GROWTH
PLANT GROWTH

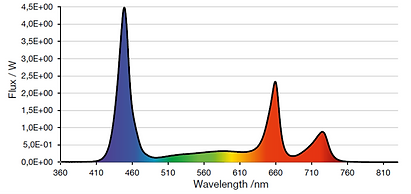

Efficient creation of photons in photo synthetic active region of 400-700nm. Especially in high absorption region around 450nm and 660nm
with supplemental light
without supplemental light
Seeding
Seedlings need high blue content (450nm) to start germination and sprouting. This can also be supported by far red light (730nm)
with supplemental light
without supplemental light
Flowering
To induce flowering a significant content of far red light (730nm) is necessary. Most important for flowering time is day length
with supplemental light
without supplemental light
Fruiting
During fruiting the plant needs a high amount of energy to create the fruit body. A high amount of light for photosynthesis should be provided
with supplemental light
without supplemental light
